UV Special Varnishes.
Protective and Decorative UV-Varnishes
Marabu's special UV varnishes are suitable for rotary and flatbed screen printing. They enable high-gloss and matt surfaces or tactile prints. The full-surface or partial varnishing protects prints against mechanical and chemical stress.
- High gloss/matt finish or textured
- Good resistance to chemical and mechanical stress
- Fast curing
Substrates:
- Paper, corrugated paper
- Polyethylene (PE), pre-treated
- Self-adhesive PVC foil
- PET
- PVC, soft
- PVC, rigid
- Polycarbonate (PC)
- Polyester (PETG)
Industry solution for:
UVLG:
- Paper, cardboard, paste board, and plastics
UVLB:
- Paper, cardboard, pasteboard
- PE, PP self-adhesive foils, Corona pre-treated or top-coated
- Polyester PET foils, top-coated
- PVC and paper labels
UVLM / UVLS:
- Polycarbonate
- Pre-treated Polyester
- PVC
Since all the print substrates mentioned may be different in printability even within an individual type, preliminary trials are essential to determine the suitability for the intended use.
Highlights:
- High gloss/matt finish or textured
- Good resistance to chemical and mechanical stress
- Fast curing
- UVLS1 1KG UV Structure Varnish, coarse, UV varnish with coarse structure, transparent
- UVLS2 1 KG UV Structure Varnish, fine, UV varnish with fine structure, milky

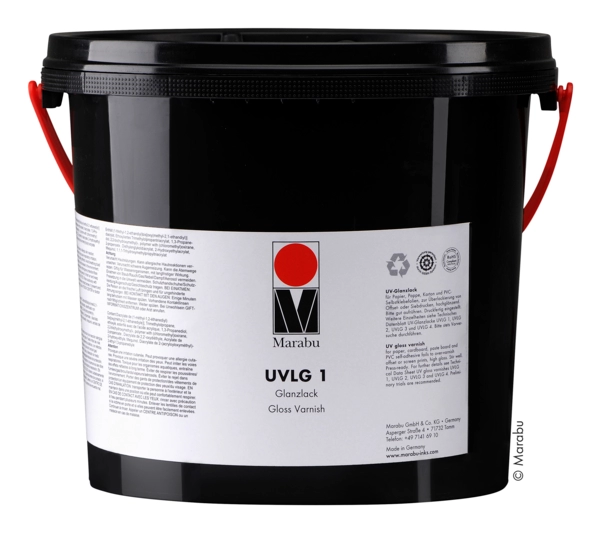

- UVLG5 5 KG UV Gloss Varnish, UV gloss varnish for ennobling of offset prints
- UVLG6 5 KG UV Gloss Varnish, UV gloss varnish for outdoor use, highly resistant
- UVLG6 5 KG UV Gloss Varnish, UV gloss relief varnish for flat-bed screen printing
- UVLM2 5 KG UV Matt Varnish, UV matt varnish for ennobling of offset prints
- UVLB1 5 KG UV Braille Varnish, rotary screen printing, Protective and Decorative UV-Varnishes

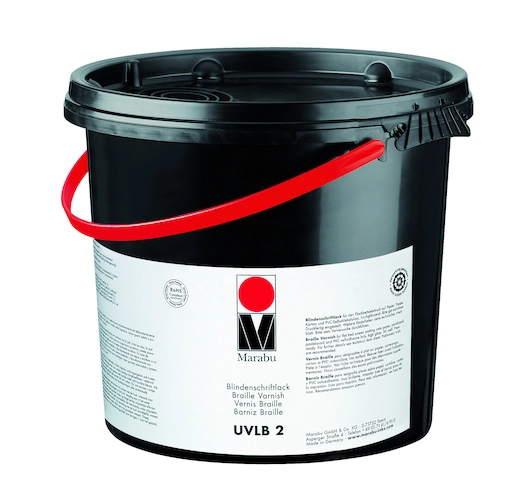

- UVLB2 5 KG UV Braille Varnish, flat bed screen printing, Protective and Decorative UV-Varnishes
UV-curable, transparent varnish. Suitable for e. g. membrane switches, or for special graphic effects.
UV-curable, milky varnish. Suitable for e. g. membrane switches, or for special graphic effects.
High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for ennobling of offset prints.
High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for outdoor use.
High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for flat-bed screen printing.
UV-curable varnish for ennobling of offset prints. Suitable for e. g. membrane switches, or for special graphic effects.
Marabu's special UV varnishes are suitable for rotary and flatbed screen printing. They enable high-gloss and matt surfaces or tactile prints. The full-surface or partial varnishing protects prints against mechanical and chemical stress.
Marabu's special UV varnishes are suitable for rotary and flatbed screen printing. They enable high-gloss and matt surfaces or tactile prints. The full-surface or partial varnishing protects prints against mechanical and chemical stress.
Properties:
- UV-curable varnishes for visual / tactile effects or protective varnish
- High degree of gloss, very matt, or structured, good resistances, fast curing
Substrates:
- Paper, corrugated paper
- Polyethylene (PE), pre-treated
- Self-adhesive PVC foil
- PET
- PVC, soft
- PVC, rigid
- Polycarbonate (PC)
- Polyester (PETG)
Auxiliaries:
| UVV3 | Thinner | 1 - 3 % |
| UR3 | Cleaner (flp. 42°C) | |
| UR4 | Cleaner (flp. 52°C) | |
| UR5 | Cleaner (flp. 72°C) |
Ink adjustment:
- Good chemical resistance
- Good rub and abrasion resistance
- Fast curing
Drying:
A UV-curing unit with a mercury lamp (80-120 W/cm) cures the varnishes at a belt speed of 20-35 m/min.
UVLB:
The UVLB 1 and UVLB 2 varnishes are highly reactive and have very fast curing properties. A UV drying unit with one or two medium pressure mercury vapour lamps (150-200 W/cm power) cures the varnishes at a belt speed of 15-50 m/min.
UVLM / UVLS:
A UV-curing unit with a medium pressure mercury lamp (80-120 W/cm) and a belt speed of 15-25 m/min will cure these UV varnishes. For the structured varnishes the use of nitrogen UV-dryers is not necessary.
The curing speed of the ink is generally dependant upon the kind of UV-curing unit (reflectors), number, age, and power of the UV-lamps, the printed ink film thickness, colour shade, substrate in use, as well as the printing speed. All UV varnishes are post-curing varnishes which will achieve their final adhesion and resistances after 24 hours. The ink film has to withstand a cross-cut tape test after having cooled down to room temperature.
Printing parameters:
All commercially available capillary films (15-20 µm) or solvent resistant photo emulsions and combined stencils can be used for UV inks.
For regular overvarnishing (UVLG) we recommend to use very fine mesh counts like 150-27 to 185-27 threads (1:1 plain weave) in order to achieve a thin ink film. The varnishes can also be printed with a thicker mesh, up to 120-34 threads.
For UVLM / UVLS we recommend a mesh count between 120-31 and 150-34 threads (plain weave). A uniform screen tension is most important to receive an even finish.
UVLB 1 is best suited for rotary screen printing fabrics such as Gallus Screeny® Type BZ and Stork Screens Rotamesh® RM 75 with 40 % open area. Ink layer thicknesses of 150-220 µm are possible to print.
UVLB 2 is suitable for flat bed screen printing. Fabrics of 32-70 to 40-80 threads/cm can here be used. By using the corresponding stencil technology (EOM 160-190 µm), ink layer thicknesses of 150-220 µm max. can be printed.
- Paper, corrugated paper
- Polyethylene (PE), pre-treated
- Self-adhesive PVC foil
- PET
- PVC, soft
- PVC, rigid
- Polycarbonate (PC)
- Polyester (PETG)
- Paper, cardboard, paste board, and plastics
- Paper, cardboard, pasteboard
- PE, PP self-adhesive foils, Corona pre-treated or top-coated
- Polyester PET foils, top-coated
- PVC and paper labels
- Polycarbonate
- Pre-treated Polyester
- PVC
- High gloss/matt finish or textured
- Good resistance to chemical and mechanical stress
- Fast curing
Substrates:
Industry solution for:
These UV-curable varnishes are suited for the following substrates:
UVLG:
UVLB:
UVLM / UVLS:
Since all the print substrates mentioned may be different in printability even within an individual type, preliminary trials are essential to determine the suitability for the intended use.Highlights:
- UVLS1 1KG UV Structure Varnish, coarse, UV varnish with coarse structure, transparent
- UVLS2 1 KG UV Structure Varnish, fine, UV varnish with fine structure, milky
- UVLG5 5 KG UV Gloss Varnish, UV gloss varnish for ennobling of offset prints
- UVLG6 5 KG UV Gloss Varnish, UV gloss varnish for outdoor use, highly resistant
- UVLG6 5 KG UV Gloss Varnish, UV gloss relief varnish for flat-bed screen printing
- UVLM2 5 KG UV Matt Varnish, UV matt varnish for ennobling of offset prints
- UVLB1 5 KG UV Braille Varnish, rotary screen printing, Protective and Decorative UV-Varnishes
- UVLB2 5 KG UV Braille Varnish, flat bed screen printing, Protective and Decorative UV-Varnishes
Available in these sizes / volumesUV Structure Varnish, coarse UVLS 1, 1 kg3520005700114UV-curable, transparent varnish. Suitable for e. g. membrane switches, or for special graphic effects.
UV Structure Varnish, fine UVLS 2, 1 kg3520005700115UV-curable, milky varnish. Suitable for e. g. membrane switches, or for special graphic effects.
UV Gloss Varnish UVLG 5, 5 kg3520005800119High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for ennobling of offset prints.
UV Gloss Varnish UVLG 6, 5 kg3520005800120High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for outdoor use.
UV Gloss Varnish UVLG 7, 5 kg3520010000000High gloss UV printing varnishes for full print area or spot varnishing of screen and offset prints. Especially suited for flat-bed screen printing.
UV Matt Varnish UVLM 2, 5 kg3520005800121UV-curable varnish for ennobling of offset prints. Suitable for e. g. membrane switches, or for special graphic effects.
UV Braille Varnish, rotary screen printing UVLB 1, 5 kg3520005800122Marabu's special UV varnishes are suitable for rotary and flatbed screen printing. They enable high-gloss and matt surfaces or tactile prints. The full-surface or partial varnishing protects prints against mechanical and chemical stress.
UV Braille Varnish, flat bed screen printing UVLB 2, 5 kg3520005800123Marabu's special UV varnishes are suitable for rotary and flatbed screen printing. They enable high-gloss and matt surfaces or tactile prints. The full-surface or partial varnishing protects prints against mechanical and chemical stress.
- UV-curable varnishes for visual / tactile effects or protective varnish
- High degree of gloss, very matt, or structured, good resistances, fast curing
- Paper, corrugated paper
- Polyethylene (PE), pre-treated
- Self-adhesive PVC foil
- PET
- PVC, soft
- PVC, rigid
- Polycarbonate (PC)
- Polyester (PETG)
- Good chemical resistance
- Good rub and abrasion resistance
- Fast curing
Properties:
Substrates:
Auxiliaries:
UVV3 Thinner 1 - 3 % UR3 Cleaner (flp. 42°C) UR4 Cleaner (flp. 52°C) UR5 Cleaner (flp. 72°C) Ink adjustment:
Drying:
UVLG:
A UV-curing unit with a mercury lamp (80-120 W/cm) cures the varnishes at a belt speed of 20-35 m/min.
UVLB:
The UVLB 1 and UVLB 2 varnishes are highly reactive and have very fast curing properties. A UV drying unit with one or two medium pressure mercury vapour lamps (150-200 W/cm power) cures the varnishes at a belt speed of 15-50 m/min.
UVLM / UVLS:
A UV-curing unit with a medium pressure mercury lamp (80-120 W/cm) and a belt speed of 15-25 m/min will cure these UV varnishes. For the structured varnishes the use of nitrogen UV-dryers is not necessary.
The curing speed of the ink is generally dependant upon the kind of UV-curing unit (reflectors), number, age, and power of the UV-lamps, the printed ink film thickness, colour shade, substrate in use, as well as the printing speed. All UV varnishes are post-curing varnishes which will achieve their final adhesion and resistances after 24 hours. The ink film has to withstand a cross-cut tape test after having cooled down to room temperature.Printing parameters:
All commercially available capillary films (15-20 µm) or solvent resistant photo emulsions and combined stencils can be used for UV inks.
For regular overvarnishing (UVLG) we recommend to use very fine mesh counts like 150-27 to 185-27 threads (1:1 plain weave) in order to achieve a thin ink film. The varnishes can also be printed with a thicker mesh, up to 120-34 threads.
For UVLM / UVLS we recommend a mesh count between 120-31 and 150-34 threads (plain weave). A uniform screen tension is most important to receive an even finish.
UVLB 1 is best suited for rotary screen printing fabrics such as Gallus Screeny® Type BZ and Stork Screens Rotamesh® RM 75 with 40 % open area. Ink layer thicknesses of 150-220 µm are possible to print.
UVLB 2 is suitable for flat bed screen printing. Fabrics of 32-70 to 40-80 threads/cm can here be used. By using the corresponding stencil technology (EOM 160-190 µm), ink layer thicknesses of 150-220 µm max. can be printed.
