UltraJet® DLE-LH.
Versatile ink with high lightfastness
Ultra Jet DLE-LH is the alternative ink to Mimaki LH-100 for digital graphic printing. It combines UV-LED curing, exceptional versatility, and high lightfastness. Available as a complete, ready-to-run solution including LH-100 chip.
- Excellent adhesion to many substrates, even difficult ones
- High-quality pigmentation
- Manufactured without the use of TPO
- Low odor
Substrates:
- Acrylic glass (PMMA)
- PVC, rigid
- Polycarbonate foil
- ABS
- Polystyrene (PS)
- PVC, soft
- Self-adhesive PVC foil
- PVC foil
- Polyester coated
- Metals
- Wood
- Printable Textiles
- Artificial Leather
- Paper, corrugated paper
Compatible printers / printheads:
Printer compatibility:
- Mimaki UJF-3042MKII
- Mimaki UJF-6042MKII
- Ricoh Gen4
- Toshiba Tec CE4
Highlights:
Complete solution
- Ultra Jet DLE-LH is supplied in the appropriate packaging, including an LH-100 chip, and is ready for immediate use.
- Outstanding on PMMA, PP/PE, PC, PET, and more, enabling a broad range of applications. For further substrates, see Technical Data Sheet.
- Milling, drilling, bending, and more: the ink film re-mains stable and does not chip or crack.
- Ideally suited for outdoor applications.
Available in these sizes / volumes
Basic Shades
428
Yellow
438
Magenta
459
Cyan
489
Black
Further Products
170
White
910
Varnish

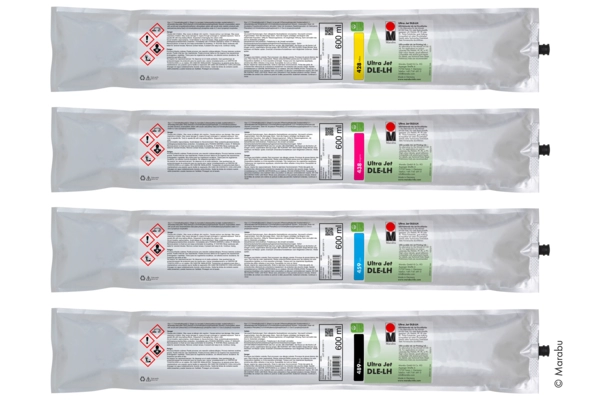

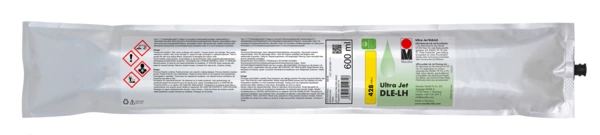

Yellow 428, 600 ML
36230031428
36230031428

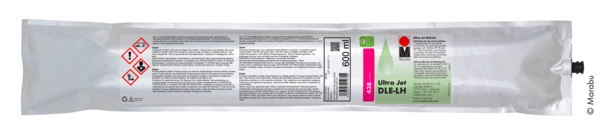

Magenta 438, 600 ML
36230031438
36230031438

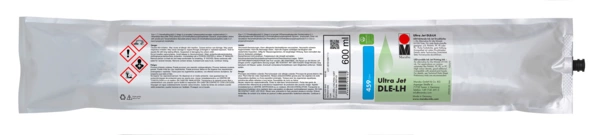

Cyan 459, 600 ML
36230031459
36230031459

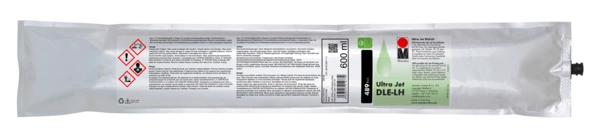

Black 489, 600 ML
36230031489
36230031489
White 170, 600 ML
36230031170
36230031170
Varnish 910, 600 ML
36230031910
36230031910
Basic Shades
438
Magenta
428
Yellow
459
Cyan
489
Black
Further Products
170
White
910
Varnish

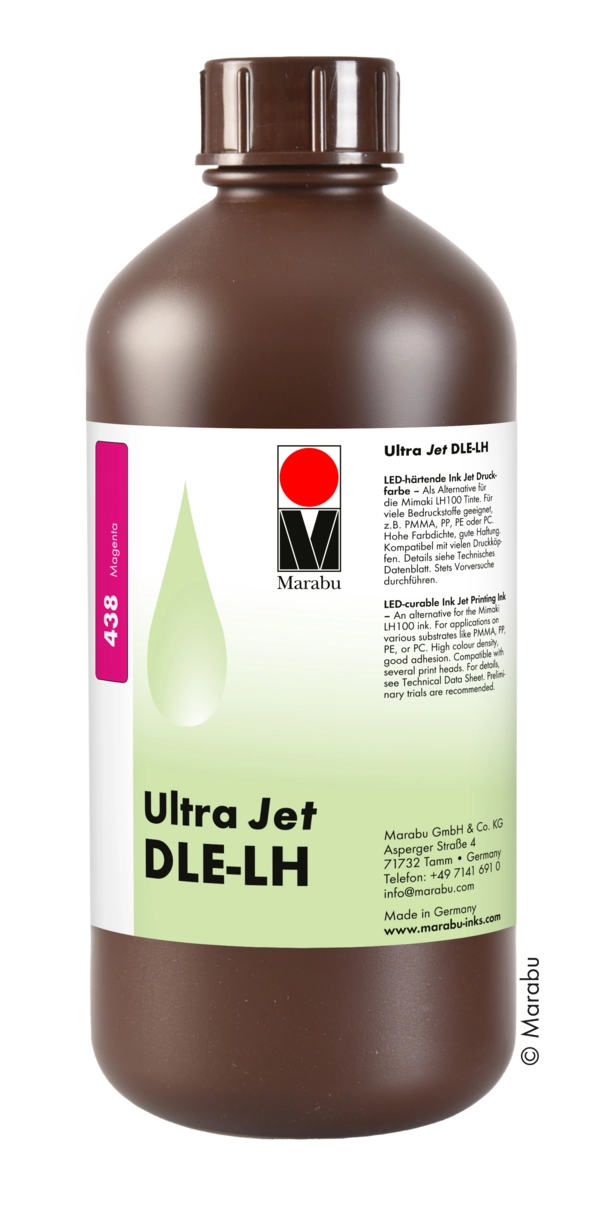

Magenta 438, 1 L
36230097438
36230097438

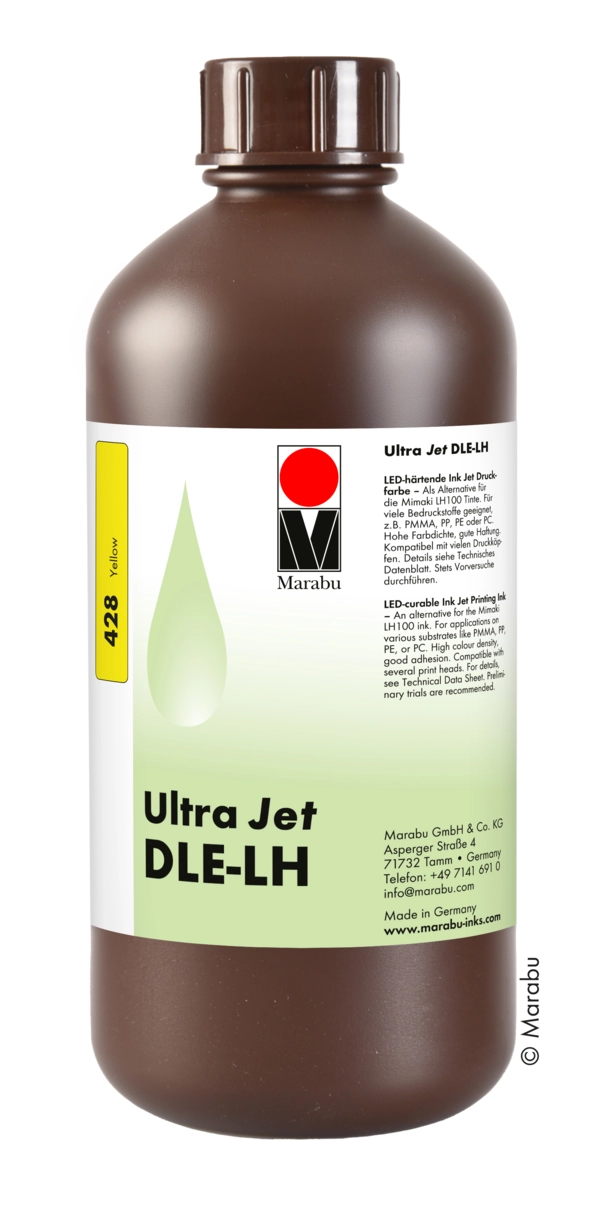

Yellow 428, 1 L
36230097428
36230097428
Cyan 459, 1 L
36230097459
36230097459

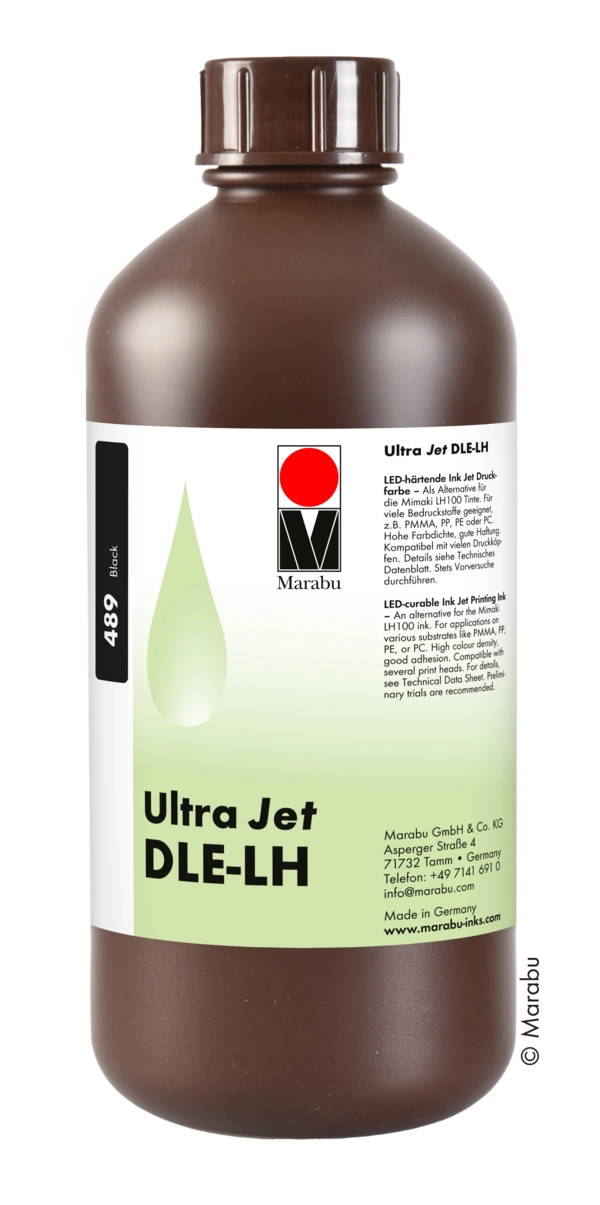

Black 489, 1 L
36230097489
36230097489

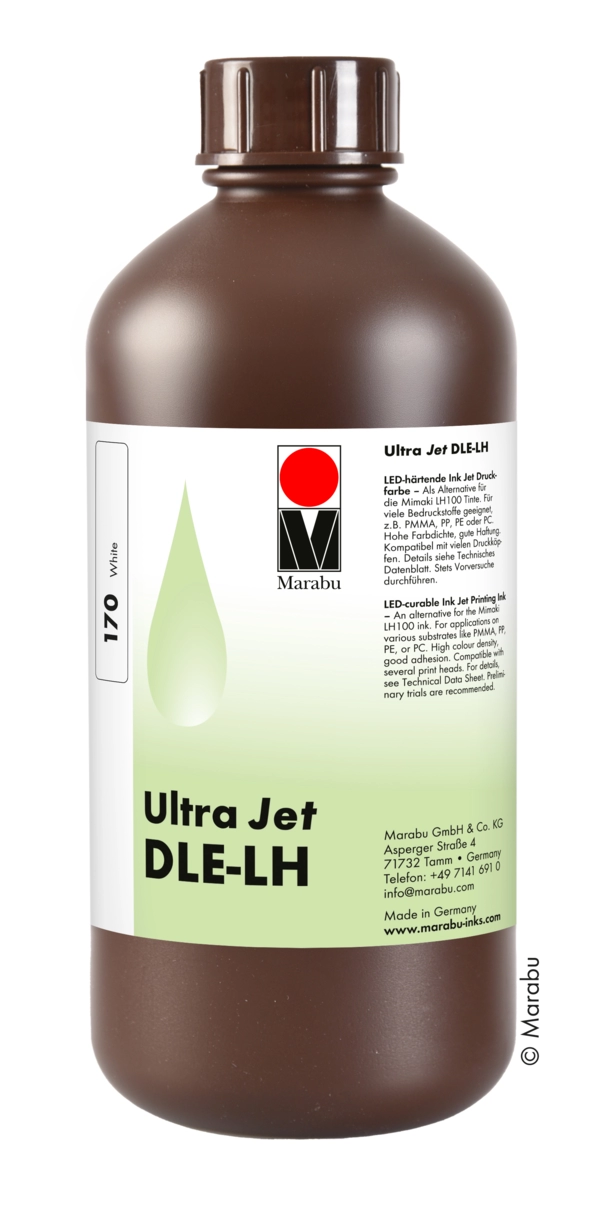

White 170, 1 L
36230097170
36230097170

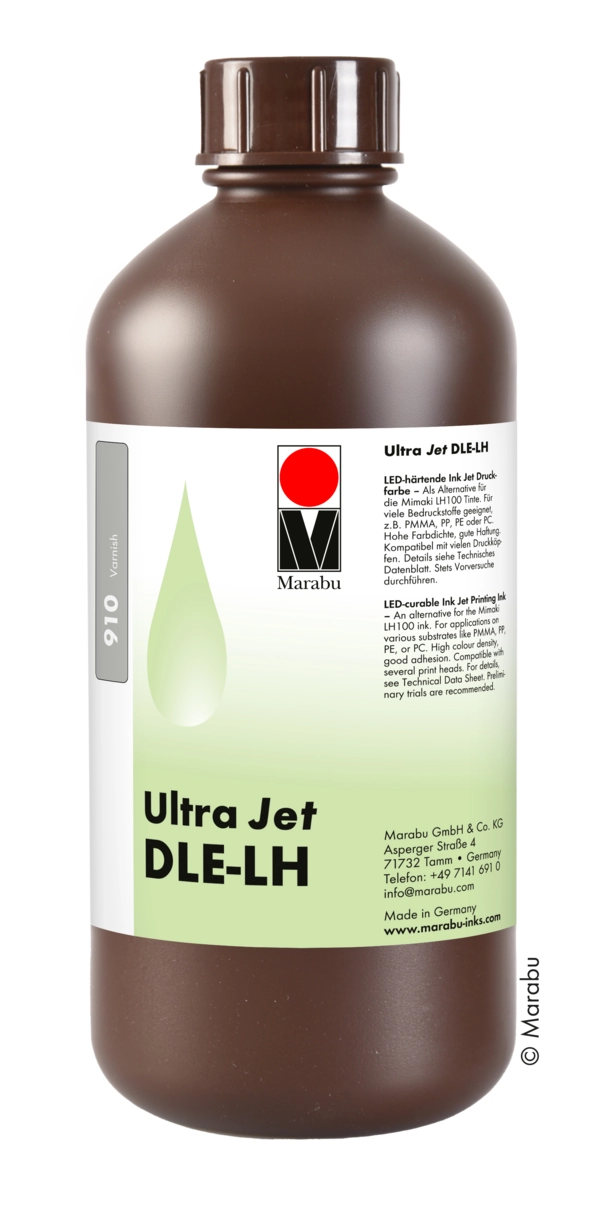

Varnish 910, 1 L
36230097910
36230097910
- Basic Shades428
Yellow
438Magenta
459Cyan
489Black
Further Products170White
910Varnish
Yellow 428, 600 ML
36230031428Magenta 438, 600 ML
36230031438Cyan 459, 600 ML
36230031459Black 489, 600 ML
36230031489White 170, 600 ML
36230031170Varnish 910, 600 ML
36230031910 - Basic Shades438
Magenta
428Yellow
459Cyan
489Black
Further Products170White
910Varnish
Magenta 438, 1 L
36230097438Yellow 428, 1 L
36230097428Cyan 459, 1 L
36230097459Black 489, 1 L
36230097489White 170, 1 L
36230097170Varnish 910, 1 L
36230097910
Properties:
- UV-LED-curable inkjet ink, as an alternative to Mimaki LH-100 ink.
Drying:
- LED Curing: Wavelength 395 nm.
- Post-curing within 24 h.
Ink change-over:
Switch & Swap / flushing required:
Before switching to DLE-LH, fully drain the ink system and flush all ink-carrying components with DI-UR cleaner.
Please note: When switching from a third-party supplier, an (additional) cleaning step should be carried out using the third-party supplier’s cleaner, followed by cleaning with DI-UR. Replacing the filters (dampers) is generally recommended, as well as checking whether any further spare parts need to be replaced.
Switch & Match: profiling is required to achieve maximum color shade accuracy.
Before switching to DLE-LH, fully drain the ink system and flush all ink-carrying components with DI-UR cleaner.
Please note: When switching from a third-party supplier, an (additional) cleaning step should be carried out using the third-party supplier’s cleaner, followed by cleaning with DI-UR. Replacing the filters (dampers) is generally recommended, as well as checking whether any further spare parts need to be replaced.
Switch & Match: profiling is required to achieve maximum color shade accuracy.
- Acrylic glass (PMMA)
- PVC, rigid
- Polycarbonate foil
- ABS
- Polystyrene (PS)
- PVC, soft
- Self-adhesive PVC foil
- PVC foil
- Polyester coated
- Metals
- Wood
- Printable Textiles
- Artificial Leather
- Paper, corrugated paper
- Mimaki UJF-3042MKII
- Mimaki UJF-6042MKII
- Ricoh Gen4
- Toshiba Tec CE4
- Ultra Jet DLE-LH is supplied in the appropriate packaging, including an LH-100 chip, and is ready for immediate use.
- Outstanding on PMMA, PP/PE, PC, PET, and more, enabling a broad range of applications. For further substrates, see Technical Data Sheet.
- Milling, drilling, bending, and more: the ink film re-mains stable and does not chip or crack.
- Ideally suited for outdoor applications.
Substrates:
Compatible printers / printheads:
Printer compatibility:Highlights:
Complete solution- Basic Shades428
Yellow
438Magenta
459Cyan
489Black
Further Products170White
910Varnish
Yellow 428, 600 ML
36230031428Magenta 438, 600 ML
36230031438Cyan 459, 600 ML
36230031459Black 489, 600 ML
36230031489White 170, 600 ML
36230031170Varnish 910, 600 ML
36230031910 - Basic Shades438
Magenta
428Yellow
459Cyan
489Black
Further Products170White
910Varnish
Magenta 438, 1 L
36230097438Yellow 428, 1 L
36230097428Cyan 459, 1 L
36230097459Black 489, 1 L
36230097489White 170, 1 L
36230097170Varnish 910, 1 L
36230097910
Available in these sizes / volumesBasic Shades428Yellow
438Magenta
459Cyan
489Black
Further Products170White
910Varnish
Yellow 428, 600 ML
36230031428Magenta 438, 600 ML
36230031438Cyan 459, 600 ML
36230031459Black 489, 600 ML
36230031489White 170, 600 ML
36230031170Varnish 910, 600 ML
36230031910Basic Shades438Magenta
428Yellow
459Cyan
489Black
Further Products170White
910Varnish
Magenta 438, 1 L
36230097438Yellow 428, 1 L
36230097428Cyan 459, 1 L
36230097459Black 489, 1 L
36230097489White 170, 1 L
36230097170Varnish 910, 1 L
36230097910- UV-LED-curable inkjet ink, as an alternative to Mimaki LH-100 ink.
- LED Curing: Wavelength 395 nm.
- Post-curing within 24 h.
Properties:
Drying:
Ink change-over:
Switch & Swap / flushing required:
Before switching to DLE-LH, fully drain the ink system and flush all ink-carrying components with DI-UR cleaner.
Please note: When switching from a third-party supplier, an (additional) cleaning step should be carried out using the third-party supplier’s cleaner, followed by cleaning with DI-UR. Replacing the filters (dampers) is generally recommended, as well as checking whether any further spare parts need to be replaced.
Switch & Match: profiling is required to achieve maximum color shade accuracy.
